Mi nuevo Capricho

[Nokturno Kulto]

Disfrutalo y cuidado con el consumo :clap1: :clap1:

[T146146]

yo me apunto a esa minikdd madrileña con Julito para ver tu coche eh!! :clap1: :clap1:



precioso y mas que lo va a estar........ :clap1:



Romulo, creo que cualquiera que lea tu contestación, se ve claramente que no eres un "tocahuevos", al contrario, es con criterio y por ayudar, esta clarito :clap1: :clap1: :clap1:

[supercanedas]

Romulo, creo que cualquiera que lea tu contestación, se ve claramente que no eres un "tocahuevos", al contrario, es con criterio y por ayudar, esta clarito :clap1: :clap1: :clap1:

bueno,la correa de la distribucion dificil que se le rompa,lleva cadena si no me equivoco

sober el coche,a mi personalmente me parece ....bueno...ajjaja ,espero que no te ofendas

Aunque siendo regalado,la cosa cambia

Por cierto,esta homologado para seis plazas

5.7L SPFI ENGINE - 1994, 1995, & 1996 only



Trade Name: LT1

Number of Cylinders: 8 cylinders - 90 degree V



The 1995 model year marked the eightieth year of the Cadillac V8 engine.

Net Power: 260 bhp (194 kw) @ 5000 rpm

Net Torque: 330 lb-ft. (447 Nm) @ 3200 rpm

Redline RPM: 5500 RPM

Power to weight ratio: 0.060 (260/4369)

Pounds per Horsepower: 16.8

Displacement: 349.9 cu. in. (5.7 liter/5735 cc)

Bore: 4.00 in. (101.6 mm)

Stroke: 3.48 in. (88.39 mm)

Compression Ratio: 10.5:1

Cylinder Block: Cast Iron

Cylinder Head: Cast Iron

Intake Manifold: Cast Aluminum

Lifter Assembly: Hydraulic

Valvetrain: Over Head Valve (OHV)

Intake Valve: 1.94 in. (49.3 mm)

Exhaust Valve: 1.50 in. (38.1 mm)

Pistons: Cast Aluminum

Firing Order: 1-8-4-3-6-5-7-2

Left Bank: 1-3-5-7

Right Bank: 2-4-6-8

Crankshaft: Cast Iron

Main Bearings: 5









ENGINE LUBRICATION SYSTEM



Oil Pressure: 6 psi (41 kPa) @ 1000 rpm

Type of Intake: Stationary

Filter System: Full-Flow









ENGINE COOLING SYSTEM



Surge Tank Cap Relief: 15 psi (104 kPa)

Thermostat Starts to Open: 180 degrees F (82 C)

Water Pump Type: Centrifugal (spur gear driven by the camshaft)

Drive Belt: Serpentine Belt

Radiator Core: Hi-Efficiency Aluminum

Type: Reverse Flow Cooling System

Coolant: Dex-Cool (unique orange color - rated to last 100,000 miles or 5 years. AKA Havoline Extended Life Antifreeze).

Radiator Cooling Fans: Dual Electric Fans with a 150-watt primary (RH) fan and a 100-watt secondary (LH) fan - Primary (RH) Fan ON 225 F (107 C), Secondary (LH) Fan ON 232 F (111 C)

Radiator Cooling Fan (Heavy-Duty): Mechanical belt driven Centrifugal thermostatic clutch fan (primary) and 240-watt (LH) electric fan (secondary).









FUEL SYSTEM



Induction Type: Sequential Port Fuel Injection (SPFI)

Idel Speed: PCM (Powertrain Control Module) Controlled

Filter Type: Paper Type Element

Fuel Pump: Electric (in tank)

Fuel Required: Unleaded (87 octane)









AUTOMATIC TRANSMISSION



Trade Name: 4L60-E

Type: 4-speed automatic with electronic shift control, overdrive, torque converter clutch

Fluid Required: Dexron-III

Ratios: 1st 3.06:1, 2nd 1.62:1, 3rd 1.00:1, 4th 0.70:1, Reverse 2.29:1









REAR DRIVE AXLE



Description: Semi-Floating Hypoid

No. of Differential Pinions: 2

Drive Wheel Bearing Type: Roller

Axle Ratio (Fleetwood): 2.56:1

Axle Ratio (Brougham): 2.93:1

Axle Ratio (V4P Trailer Towing Option): 3.42:1

Axle Ratio (Coachbuilder): 2.93:1









EMISSION CONTROL SYSTEMS



Air Injection: Air Injection with Computer Command Control (CCC)

Exhaust Gas Recirculation: Controlled Flow

Catalytic Converter: Warm-Up 3-Way

Evaporative Emission Control: Charcoal Canister

Crankcase Emission: Positive Crankcase Ventilation (PVC)

Electronic System: Closed Loop









EXHAUST SYSTEM



Type: Dual with Crossover Pipe

Muffler: Two-Reverse Flow

Resonator: Two-Straight Flow

Exhaust Pipe: Stainless Steel

Intermediate Pipe: Stainless Steel

Tail Pipe: Stainless Steel









ELECTRICAL SYSTEM



Battery (V/CCA): 12.8 VCD / CCA

AC Delco Model: 78-7YR 770 CCA 960 CA 120 RC

Voltage: 12 vdc

Ground: Negative

Generator: 140 amps









AIR CONDITIONING SYSTEM



Refrigerant: R-134a 1.75 lbs. (0.79 kg)









FLUID CAPACITIES



Auto Trans (4L60-E) Pan Removal: 5.0 quarts (4.7l)

Auto Trans (4L60-E) Overhaul (298 mm Torque Conv.): 11.2 quarts (10.6l)

Engine Oil & Filter Change: 5.0 quarts (4.7l)

Engine Cooling: 14.0 quarts (13.2l)

Engine Cooling with A/C: 15.1 quarts (14.3l)

Engine Cooling Heavy-Duty: 16.8 quarts (15.9l)

Fuel Capacity: 23.0 gal. (87 L)

Power Steering: 1.4 quarts (0.65l)

Rear Axle: 4.3 pints (2.0l)









TIGHTEN TORQUE



Spark Plugs: 11 lb-ft. (16 Nm)

Oil Filter: 14 lb-ft. (19 Nm)

Oil Pan Drain Plug: 30 lb-ft. (30 Nm)

Wheel Lug Nut: 100 lb-ft. (140 Nm)

Rear Axel Filler Plug: 26 lb-ft. (35 Nm)









VEHICLE DIMENSIONS



Wheelbase: 121.5 in. (3085 mm)

Length: 225.1 in. (5717 mm)

Width: 78.0 in. (1982 mm)

Width (mirror to mirror overall): in. ( mm)

Height: 57.1 in. (1451 mm)

Ground Clearance: 5.5 in (139.7 mm)

Front Overhang: in. ( mm)

Rear Overhang: in. ( mm)

Turning circle (curb to curb): 44.5 ft. (13564 mm)

Turning circle (wall to wall): ft. (mm)

Front Tread: 61.7 in. (1568 mm)

Rear Tread: 60.7 in. (1542 mm)

Head Room (Front): 38.7 in. (984 mm)

Head Room (Rear): 39.1 in. (994 mm)

Head Room wih Sunroof (Frt/RR): in. ( mm)

Leg Room (Front): 42.4 in. (1079 mm)

Leg Room (Rear): 43.9 in. (1116 mm)

Shoulder Room (Front): 64.2 in. (1632 mm)

Shoulder Room (Rear): 64.0 in. (1626 mm)

Hip Room (Front): 59.2 in. (1504 mm)

Hip Room (Rear): 59.7 in. (1518 mm)

Luggage Capacity: 21.1 cu. ft. (598 L)

Trunk Liftover Height: in. (mm)

Passenger Volume: 145.9 cu. ft. (4131 L)

Passenger Volume with Sunroof: cu. ft. ( L)

Shipping Weight (Fleetwood): 4,369 lbs. (1,982 kg)

Shipping Weight (Brougham): 4,389 lbs. (1,991 kg)



Curb Weight is the weight of a car as delivered, including all options, that have at least a 33 percent penetration with fuel and lubricant levels full.

Weight Distribution (Frt/RR): 55%/45%

Domestic Content: 95 percent





Note: The interior volume is measured using SAE Recommended Practice J1100 as per EPA Fuel economy regulations, reg. 40 CFR 600.315-82 "Classes of Comparable Automobiles."







PERFORMANCE



EPA Fuel Economy: 17 mpg city, 26 mpg highway

EPA Fuel Economy (Brougham): 17 mpg city, 25 mpg highway

EPA Fuel Economy (with V4P Trailer Towing Option): 17 mpg city, 23 mpg highway



EPA Fuel Economy are laboratory fuel economy tests administered by the Environmental Protection Agency using simulated weight and drag to re-create real driving conditions. The city fuel economy test, also used to test emissions compliance, is based on a drive though the typical Los Angeles urban traffic of about twenty years ago. The highway test uses a higher, steadier speed, averaging 49.4 mph.

(Note: avoids a $1,000 gas guzzler tax by .1 mpg!)

Fuel Range: 575 miles

Skidpad (g): 0.77 G

0 to 30 mph Acceleration: 3.4 seconds (with 2.56:1 Rear Axle)

0 to 60 mph Acceleration: 8.5 seconds (with 2.56:1 Rear Axle)

0 to 100 mph Acceleration: 22.6 seconds (with 2.56:1 Rear Axle)

Standing 1/4 mile: 16.6 seconds elapsed time at 86.6 MPH (with 2.56:1 Rear Axle)

30 to 50 mph Passing: 5.4 seconds (with 2.56:1 Rear Axle)

50 to 70 mph Passing: 5.5 seconds (with 2.56:1 Rear Axle)

Top Speed: Internal RPM limiter set at 108 mph (Fuel shut-off) - Probably is drag-limited to about 140 mph.

Braking Distance 60-0 MPH: Feet ( M)

Coefficient of Drag: 0.36 Cd

Frontal Area: 25.9 Sq. Ft.

Max towing capacity: 5,000 lbs.

Max towing capacity with V4P Trailer Towing Option: 7,000 lbs.









INTERIOR SOUND LEVEL



Idle: dBA

Full-throttle acceleration: dBA

35-mph cruising: dBA

35-mph coasting: dBA

55-mph cruising: dBA

55-mph coasting: dBA

70-mph cruising: dBA

70-mph coasting: dBA

Exterior Sound Level, Moving Vehicle, Pass-By: dBA









STANDARD EQUIPMENT



INTERIOR

6 Way Power front seat adjusters/recliners * Assist handles (4) * Cigar lighters: (1) front/(2) rear * Front/rear door armrests w/ (1) front/(2) rear ash receivers * Door pull swing handles * Front seatback pockets * Air bags, driver and front passenger * ETR AM stereo/FM stereo w/cassette & Equalizer-inc: seek-scan, search/repeat, auto tone control, auto reverse, music search, (6) speakers * Auto-dimming inside rearview mirror * Automatic door locking system with anti-lockout * Carpeted Front & Rear Floor Mats * Carpeted Trunk Mat & Cargo Net * Cloth Split Bench Seats * Column shift * Controlled-cycle wipers * Cruise control * Digital Clock * Digital instrumentation/fuel gauge/trip odometer * Electronic climate control w/CFC Free A/C * Flash-to-pass headlamps * Front visor vanity mirrors, illuminated * Illuminated entry * Illuminated Visor Mirrors * Interior lights: glove compartment, map, and luggage compartment * Message Telltale Center * Outside temp display * On-board computer diagnostics * PASS-Key II security * Power door locks with anti-lockout * Power front seat adjusters/recliners * Power windows, drivers express down * Pre-wired for cellular phone * Reading lamps, front/rear * Rear window defogger * Rear doors child security locks * Lockout rear windows * Remote Controlled Trunk Release with Power Pull Down * Remote keyless entry/key fob * Retained accessory power * Side Glass Defoggers * Solar-Ray tinted glass * Tilt-adjusting wheel, leather-trimmed * Traction Control on/off switch * Twilight Sentinel Headlights

EXTERIOR

Clearcoat paint * Front/rear bumper guards/rub strips * Bright unique lower body-side molding * Brake/transmission interlock * Compact spare tire with cover * Daytime Running Lights (DRL) * Electronic Level Control (ELC) * Front/rear crush zones * Front cornering lights * Lamp monitor, front/rear * Rear license plate mounting provision * Door edge guards * Power antenna, rear mounted * Power deck lid pulldown * Power, Heated Folding Sideview Mirrors * Steel safety cage * Trunk, power pull-down * Trumpet Horn * Tungsten-halogen headlamps * Underhood lamp * Warning Tones

MECHANICAL

5.7L SPFI V8 engine * Platinum tipped spark plugs * 4-speed automatic transmission w/Over Drive, torque converter clutch, electronic shift control * Brake/transmission shift interlock * Full-range traction control w/on/off switch * Rear wheel drive * 140 amp alternator * Long-life engine coolant * Fully independent front Short/long arm suspension w/coil springs * Four link rear suspension w/coil springs * Power Front Disc Brakes with Front & Rear Anti-Lock * Front & Rear Stabilizer Bars * Speed-sensitive electronic variable power-assist steering * 15" Cast Aluminum Wheels * Anti-lock braking system (ABS) * Automatic parking brake release * 23 gallon fuel tank * Stainless steel dual exhaust system



Antilock brakes and traction control are deleted on Limousine (V4U) and Funeral Coach (B9Q) options.







OPTIONAL EQUIPMENT



BROUGHAM PACKAGE ($2465.00)

Articulating headrests * Center rear armrest/cupholder * Eight-way memory driver's seat * Heated front seats * Full Padded Vinyl Roof (delete at no additional charge) * Rear Seat Illuminated Vanity Mirrors * Stylized aluminum wheels * 2.93:1 Rear Axle Ratio

TRAILER TOWING PACKAGE ($215.00)

Goodyear Eagle GA P235/70R15 * Heavy-Duty Cooling System * Rear Axle, 3.42:1 Ratio * Ride Handling Suspension System (FE2) * Trailer Wiring Harness

SECURITY PACKAGE ($360.00)

Audible Theft Deterrent System * Automatic Locking Fuel Filler Door

FLEETWOOD/BROUGHAM, OPTIONAL

Cellular phone, portable * Chrome finish wheels * Full-size spare tire with cover ($95.00) * Leather seating areas ($785.00) * Solar reflective windshield [sun Shade Tinted] * Sunroof ($1550.00) * Three-channel garage door opener / Gate Opener [HomeLink transmitter] ($135.00) * Engine Coolant Heater * 7000 lbs. Trailer Towing Package ($215.00) * Full Padded Vinyl Roof ($925.00) * AM Stereo/FM Stereo w/ Cassette and Single-Slot CD Player ($200.00) * Trunk Mounted CD Changer * Heavy Duty livery Package ($150.00) * Coachbuilder Limousine Package ($755.00) * Heritage of Ownership Badge ($25.00)



All MSRP prices listed are in US Dollars unless otherwise noted.







NORMAL MAINTENANCE REPLACEMENT PARTS



Air Cleaner Element: AC Type A1096C (25096932) / Fram CA6479

Battery: 78A-72

Fuel Filter Element: AC Type GF-624K (25121978)

Engine Oil Filter: AC Type PF52 (25160560) / AC Delco Ultra-Guard UPF-52 / Mobil1 M1-201

PVC Valve: AC Type CV895C (25095452)

Spark Plugs (Gap 0.052 in.): AC Type 41-906 (5614244)

Serpentine Drive Belt: 10186120

Upper Radiator Hose: 10260864

Lower Radiator Hose: 10237350

Lower Radiator Hose (Heavy-Duty): 10237349

Surge Tank Cap: 10244485

Thermostat: 10128336









BULB CHART



Ashtray Illumination: 1445

Backup Lamps: 2057

Center High-Mounted Stoplamp: 1156 (1141)

Cornering Lamp: 2057

Door - Courtesy: S214-2

Door - Roof Rail: 192

Front Parking and Directional Signal: 2057NA

Front Side Marker Lamp: 194

Glove Box: 194

Headlamp High Beam: 9005

Headlamp Low Beam: 9006

Headllamp Switch: 8Q245-35003A

HVAC Control: OL4186NW Type TL5

Instrument Panel Illumination: PC194

Instrument Panel Warning/Indicators: PC118

License Plate Lamp: 194

Map Lamp: 168

Parking Lamp: 2057

Rear Side Marker Lamp: 194

Stop, Tail and Directional Signal Lamp: 2057

Trunk Lamp: 920

Underhood Lamp: 561

Vanity Mirror: TS-14V1CP

Window Switch Floodlight: 74





un saludo!

Editado 28 de Junio del 2007 por supercanedas

[T146146]

:clap1: , veis, este si es un tocahuevos............. :clap1: :clap1: :clap1: :clap1:



es broma super, ya sabes que (en mi caso), el que no sabe s como el que no ve :clap1:

[Alvaro 2.6 V6]

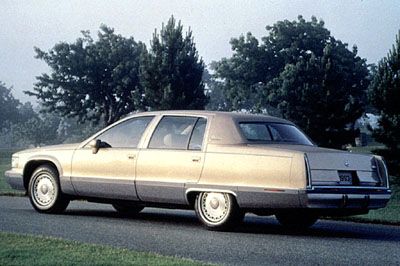

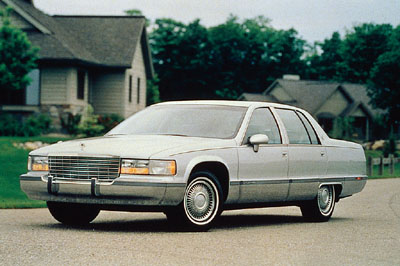

Esas 2 ultimas fotos que a puesto Supercadenas se corresponden exactamente con el coche, en color y todo... No es que sea precioso ni mucho menos pero es totalmente distinto y exclusivo cuantos como este ves por la calle??? eso es lo que me gusta y me hace gracia todo el mundo lo mira y se queda impresionado.



Ayer lo estuve limpiando y me lleve la camara para hacerle unas fotillos, cd termine y le fui a sacar fotos no tenia bateria jajajajajaja menudo desastre que soy. Pero el viernes me lo trae un amigo en grua a casa y aqui le sacare todas las fotos...

[Alvaro 2.6 V6]

Ahh una curiosidad cuando fui a ver el deposito de la gasolina, no tenia c*** de encontrarlo....... donde estaba????? a lo mejor alguno lo sabeis pero yo tarde 15 minutos en encontrarlo, debajo de la matricula, es decir tiene dos bisagras y tienes que tirar de la matricula para ver el tapon

[supercanedas]

Ahh una curiosidad cuando fui a ver el deposito de la gasolina, no tenia c*** de encontrarlo....... donde estaba????? a lo mejor alguno lo sabeis pero yo tarde 15 minutos en encontrarlo, debajo de la matricula, es decir tiene dos bisagras y tienes que tirar de la matricula para ver el tapon

eso es muy comun en los coches americanos



tio,yo creo qeu cuando vas con ese coche te miran porque se creen que va una novia dentro

[cacawe]

queremos reportaje foografico ya¡¡

[moreno100]

Hola, enhorabuena tio por el regalito. Me gusta, es diferente. Yo soy de madrid, ya te mandare un privado y me lo enseñas un finde. Saludos.
